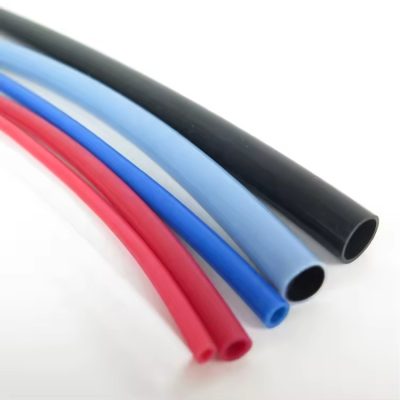

| Product Name | Ptfe Hose |
| Material | Polytetrafluoroethylene (PTFE) |
| Inner Diameter (ID) | 3mm – 50mm |
| Outer Diameter (OD) | 5mm – 60mm |
| Length | Customizable, typically 1m – 30m |
| Wall Thickness | 0.5mm – 3mm |
| Operating Pressure | 20 – 250 PSI (varies with hose type and size) |
| Burst Pressure | Up to 1000 PSI |
| Temperature Range | -70°C to 260°C |
| Flexibility | High flexibility, Bending Radius: 15mm – 300mm |
| Reinforcement | Stainless Steel Braid, Kevlar Braid |
| Color Options | White (Natural), Black, Customizable |
| Outer Covering | Smooth or Corrugated Surface, Anti-static Coating Available |
| Liner Options | Non-stick, Food Grade, Chemical Resistant |
| Standards | SAE 100R14, ISO 9001, FDA (Food Grade) |
| Applications | Chemical Transfer, Food Processing, Pharmaceutical, Aerospace |
| Chemical Resistance | Excellent resistance to almost all chemicals |
| Electrical Conductivity | Available with conductive PTFE for static dissipation |
| Abrasion Resistance | High, especially with external braid |
PTFE hoses are engineered to withstand extreme temperatures, ranging from as low as -70°C to as high as 260°C. This broad temperature tolerance makes them suitable for applications where other hoses might fail, such as in high-temperature fluid transfer, steam handling, or cryogenic operations. The ability of PTFE hoses to maintain their flexibility and strength under such conditions ensures consistent performance and durability, even in the harshest environments. Their high-temperature resistance is a key factor in their widespread use in industries like aerospace, automotive, and manufacturing.
